Friday, 10 June 2011

LScript - Image_Noise

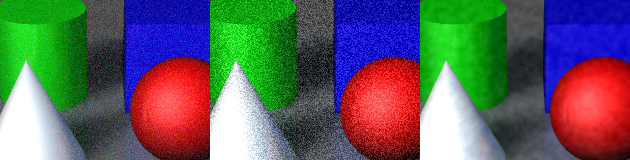

LScript (Layout) applies random noise in three different modes, monochrome, color, exposure and fBm noise. Exposure adds noise only to darker areas as they appear in real life photos. fBm is a perlin based noise using Fractal Brownian Motion.

Compatible with Newtek LightWave 9.6 and above.

// LScript Image Filter - www.StephenCulley.co.uk
//
// web   address: http://www.stephenculley.co.uk
// email address: email@stephenculley.co.uk

/*
    LScript Image Filter - Noise

    Image_Noise.ls

*/

@version 2.5
@warnings
@script image
@name *Noise

    // Title
    sTitle = "*Noise";

    // Version
    sVersion = "v1.0";

    aType = @"*Monochrome Noise : ","*Color Noise : ","*Exposure Noise : ","*fBm Noise : "@;
    iInterpolation = 1;
    iOctaves = 3;
    iType = 1;
    nAmount = 0.5;
    nPersistence = 0.25;
    nScale = 0.02;

create
{
    setdesc(aType[iType] + nAmount);
}

process: ifo
{
    if(iType == 1) // Monochrome
      {
      if(runningUnder() != SCREAMERNET) moninit(ifo.height);
      for(i = 1;i <= ifo.height;++i)
        {
        for(j = 1;j <= ifo.width;++j)
          {
          nNoise = (randu() * 2 - 1) * nAmount;
          ifo.red[j,i] = ifo.red[j,i] + nNoise;
          ifo.green[j,i] = ifo.green[j,i] + nNoise;
          ifo.blue[j,i] = ifo.blue[j,i] + nNoise;
          }
        if(runningUnder() != SCREAMERNET) if(monstep()) return;
        }
      }

    else if(iType == 2) // Colour
      {
      if(runningUnder() != SCREAMERNET) moninit(ifo.height);
      for(i = 1;i <= ifo.height;++i)
        {
        for(j = 1;j <= ifo.width;++j)
          {
          ifo.red[j,i] = ifo.red[j,i] + ((randu() * 2 - 1) * nAmount);
          ifo.green[j,i] = ifo.green[j,i] + ((randu() * 2 - 1) * nAmount);
          ifo.blue[j,i] = ifo.blue[j,i] + ((randu() * 2 - 1) * nAmount);
          }
        if(runningUnder() != SCREAMERNET) if(monstep()) return;
        }
      }

    else if(iType == 3) // Exposure
      {
      if(runningUnder() != SCREAMERNET) moninit(ifo.height);
      for(i = 1;i <= ifo.height;++i)
        {
        for(j = 1;j <= ifo.width;++j)
          {
          ifo.red[j,i] = ifo.red[j,i] + ((1 - ifo.red[j,i]) * ((randu() * 2 - 1) * nAmount));
          ifo.green[j,i] = ifo.green[j,i] + ((1 - ifo.green[j,i]) * ((randu() * 2 - 1) * nAmount));
          ifo.blue[j,i] = ifo.blue[j,i] + ((1 - ifo.blue[j,i]) * ((randu() * 2 - 1) * nAmount));
          }
        if(runningUnder() != SCREAMERNET) if(monstep()) return;
        }
      }

    else if((iType == 4) && (iInterpolation == 1)) // Linear fBm
      {
      if(runningUnder() != SCREAMERNET) moninit(ifo.height);
      noiseseed(ifo.frame); // Noise Seed
      for(i = 1;i <= ifo.height;++i)
        {
        for(j = 1;j <= ifo.width;++j)
          {
          nNoise = linearfBmnoise2D( * nScale,
                                    iOctaves,
                                    nPersistence) * nAmount;
          ifo.red[j,i] = ifo.red[j,i] + nNoise;
          ifo.green[j,i] = ifo.green[j,i] + nNoise;
          ifo.blue[j,i] = ifo.blue[j,i] + nNoise;
          }
        if(runningUnder() != SCREAMERNET) if(monstep()) return;
        }
      }

    else if((iType == 4) && (iInterpolation == 2)) // Cosine fBm
      {
      if(runningUnder() != SCREAMERNET) moninit(ifo.height);
      noiseseed(ifo.frame); // Noise Seed
      for(i = 1;i <= ifo.height;++i)
        {
        for(j = 1;j <= ifo.width;++j)
          {
          nNoise = cosinefBmnoise2D( * nScale,
                                    iOctaves,
                                    nPersistence) * nAmount;
          ifo.red[j,i] = ifo.red[j,i] + nNoise;
          ifo.green[j,i] = ifo.green[j,i] + nNoise;
          ifo.blue[j,i] = ifo.blue[j,i] + nNoise;
          }
        if(runningUnder() != SCREAMERNET) if(monstep()) return;
        }
      }
}

// INTERPOLATION

linear1D: n1,n2,i // i = interpolation point (0-1)
{
    return(n1 * (1 - i) + n2 * i);
}

cosine1D: n1,n2,i // i = interpolation point (0-1)
{
    i2 = (1 - cos(i * 3.1415926535)) * 0.5;
    return(n1 * (1 - i2) + n2 * i2);
}

bicubic1D: n1,n2,n3,n4,i // i = interpolation point (0-1)
{
    i2 = i * i;
    n_01 = n4 - n3 - n1 + n2;
    n_02 = n1 - n2 - n_01;
    n_03 = n3 - n1;
    n_04 = n2;
    return(n_01 * i * i2 + n_02 * i2 + n_03 * i + n_04);
}

// NOISE

_noiseseed = 1;
_noiseresolution = 512;
_noise = nil;
_noiseoffset = nil;
_noiseperm = nil;

noiseinit
{
    randomseed(_noiseseed); // Random Seed
    for(iN = 1; iN <= _noiseresolution; iN++)
      {
      _noise[iN] = (random() * 2) - 1; // -1.0..1.0
      _noiseperm[iN] = wrap(1,_noiseresolution,floor(random() * _noiseresolution));
      }

    for(iO = 1; iO <= 64; iO++)
      {
      _noiseoffset[iO] = ;
      }
}

noiseseed: seed
{
    _noiseseed = seed;
    noiseinit(); // Init
}

noiseresolution: resolution
{
    _noiseresolution = resolution;
    noiseinit(); // Init
}

noiseperm1D: n // i
{
// !   if(_noiseperm == nil){noiseinit();} // Init
    return(_noiseperm[wrap(1,_noiseresolution,floor(n))]);
}

noiseperm2D: v // n
{
    return(noiseperm1D(v.y + noiseperm1D(v.x)));
}

noise2D: v // n
{
// !   if(_noise == nil){noiseinit();} // Init
    return(_noise[noiseperm2D(v)]);
}

linearnoise2D: v // n
{
    v = wrap(1,_noiseresolution,v);
    vFrac = frac(v);
    vInt = v - vFrac;
    n1 = noise2D();
    n2 = noise2D();
    n3 = noise2D();
    n4 = noise2D();
    return(linear1D(linear1D(n1,n2,vFrac.x),linear1D(n3,n4,vFrac.x),vFrac.y));
}

cosinenoise2D: v // n
{
    v = wrap(1,_noiseresolution,v);
    vFrac = frac(v);
    vInt = v - vFrac;
    n1 = noise2D();
    n2 = noise2D();
    n3 = noise2D();
    n4 = noise2D();
    return(cosine1D(cosine1D(n1,n2,vFrac.x),cosine1D(n3,n4,vFrac.x),vFrac.y));
}

linearfBmnoise2D: v,octaves,persistence // octaves = i | persistence = n (0.25) // n
{
// !   if(_noiseoffset == nil){noiseinit();} // Init
    nNoise = 0.0;
    for(iO = 1; iO <= octaves; iO++)
      {
      nNoise += linearnoise2D(<(v.x + _noiseoffset[iO].x) * (2 * iO),(v.y + _noiseoffset[iO].y) * (2 * iO),0.0>) * (persistence / iO);
      }
    return(nNoise);
}

cosinefBmnoise2D: v,octaves,persistence // octaves = i | persistence = n (0.25) // n
{
// !   if(_noiseoffset == nil){noiseinit();} // Init
    nNoise = 0.0;
    for(iO = 1; iO <= octaves; iO++)
      {
      nNoise += cosinenoise2D(<(v.x + _noiseoffset[iO].x) * (2 * iO),(v.y + _noiseoffset[iO].y) * (2 * iO),0.0>) * (persistence / iO);
      }
    return(nNoise);
}

// RANDOM

_randomseed = 0; // n Seed

randomseed: seed
{
    _randomseed = seed;
}

random
{
    n = (_randomseed * 214013 + 2531011) % 2^^24;
    _randomseed = n;
    n /= 2^^24; // 0..1
    return(n);
}

gaussianrandom
{
    n1 = random();
    n2 = random();
    if(n1 == 0.0){n1 = 0.01;}
    return(sqrt(-2.0 * log(n1)) * cos(2.0 * 3.1415926535 * n2));
}

// WRAP

wrap: min,max,n
{
    n = n - floor((n - min) / (max - min)) * (max - min);
    if(n < 0) n = n + max - min; // error check
    return(n);
}

load: what,io
{
    if(what == SCENEMODE)
    {
        iInterpolation = io.read().asInt();
        iOctaves = io.read().asInt();
        iType = io.read().asInt();
        nAmount = io.read().asNum();
        nPersistence = io.read().asNum();
        nScale = io.read().asNum();

        setdesc(aType[iType] + nAmount);
    }
}

save: what,io
{
    if(what == SCENEMODE)
    {
        io.writeln(iInterpolation);
        io.writeln(iOctaves);
        io.writeln(iType);
        io.writeln(nAmount);
        io.writeln(nPersistence);
        io.writeln(nScale);
    }
}

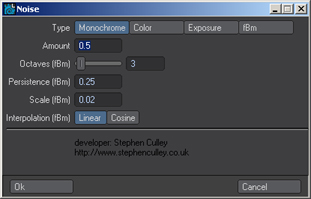

options
{
    reqbegin(sTitle + " " + sVersion);

    // Control
    ctrl_c0 = ctlchoice("Type",iType,@"Monochrome","Color","Exposure","fBm"@); // Type
    ctrl_c1 = ctlnumber("Amount",nAmount); // Amount
    ctrl_c2 = ctlslider("Octaves (fBm)",iOctaves,1,64); // Octaves
    ctrl_c3 = ctlnumber("Persistence (fBm)",nPersistence); // Persistence
    ctrl_c4 = ctlnumber("Scale (fBm)",nScale); // Scale
    ctrl_c5 = ctlchoice("Interpolation (fBm)",iInterpolation,@"Linear","Cosine"@); // Interpolation

    // Developer
    ctlsep();
    ctrl_dev0 = ctltext("","developer: Stephen Culley","http://www.stephenculley.co.uk");

    return if !reqpost();

    iType = getvalue(ctrl_c0);
    nAmount = getvalue(ctrl_c1);
    iOctaves = getvalue(ctrl_c2);
    nPersistence = getvalue(ctrl_c3);
    nScale = getvalue(ctrl_c4);
    iInterpolation = getvalue(ctrl_c5);

    setdesc(aType[iType] + nAmount);

    reqend();
}


All scripts available at my Google Drive at
https://drive.google.com/open?id=1cR_q2GVUAJHumic1-A3eXV16acQnVTWs
